suppliedair

Best breathing air. Any place.

The perfect fresh air supply for working in critical environments.

Always the best breathing air

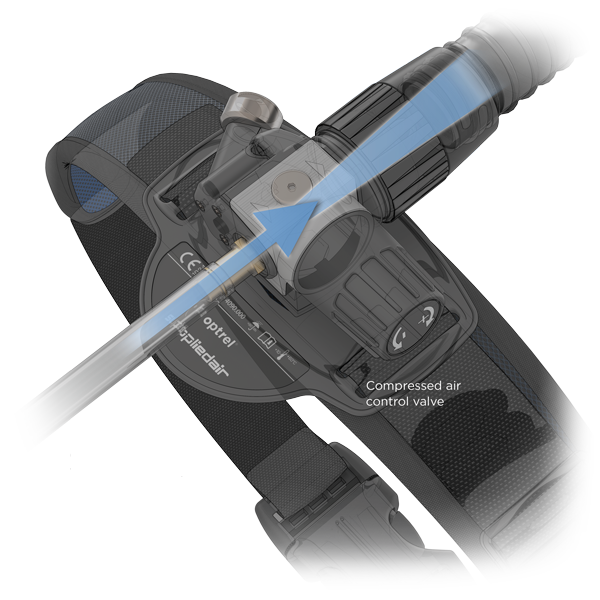

When working in toxic environments, in closed rooms or in extremely cramped situations, such as in boiler or vessel construction, a sufficient supply of clean fresh air is essential. The optrel suppliedair system forms the interface between the compressed air- carrying case air vessel and the fresh air helmet. It ensures a sufficient and regulated supply of fresh air and warns you with its integrated alarm of deviations in the target air volume.

* Suitable for all optrel PAPR helmets

Comfort Belt



An individually adjustable belt with quick-release fastener ensures a comfortable fit and ideal support of the system on the body.

Air Filter



An additional air filter provides the user maximum with safety. It prevents the penetration of foreign bodies and impurities into the clean compressed air and thus into the fresh air helmet.

Great Connectivity



Two different connection nipples are available for connection to all common compressed air systems.

optrel is a member of the EWA / European Welding Association

This association of many leading manufacturers is intensively involved in protecting welders from hazardous fumes and pollutants in the workplace.

Download the recommendation brochure on preventive protection for welders now

suppliedair

suppliedair

When working in toxic environments, in closed rooms or in extremely cramped situations, such as in boiler or vessel construction, a sufficient supply of clean fresh air is essential. The optrel suppliedair system forms the interface between the compressed aircarrying case air vessel and the fresh air helmet. It ensures a sufficient and regulated supply of fresh air and warns you with its integrated alarm of deviations in the target air volume.

    Fields of Application

    • Welding
    • Plasma Cutting
    • Grinding
    • Food Industry
    • Chemical industry
    • Painting industry

    Variants

    4090.000

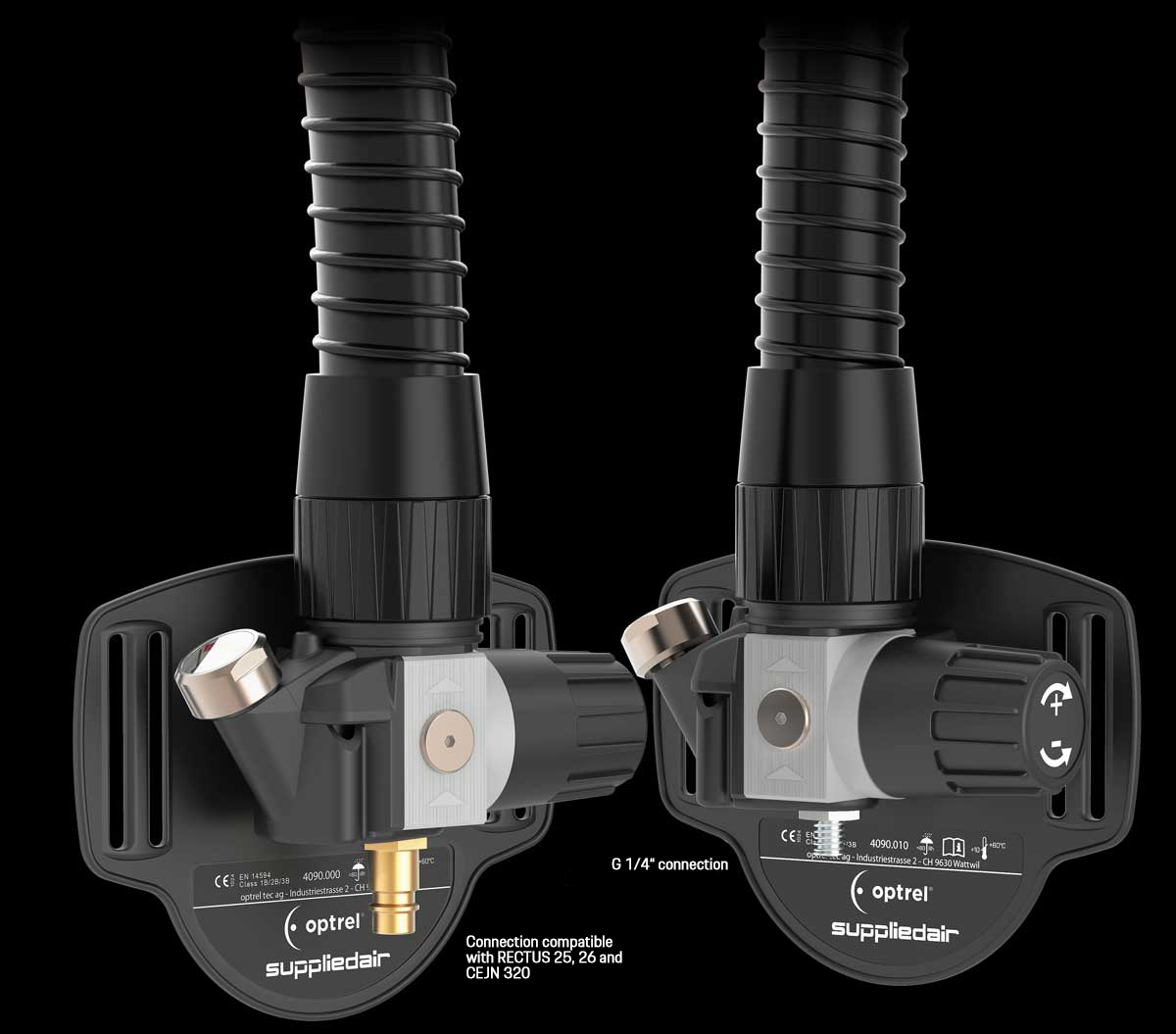

    optrel suppliedair breathing protection system with compressed air supply and connection compatible with RECTUS 25, 26 and CEJN 320
    4090.010
    optrel suppliedair breathing protection system with compressed air supply and G1/4" connection
    4090.100
    Air filtration unit for suppliedair

    Technical Data

    Air flow
    160 to 250 nL/min
    Minimum flow rate
    160 nL/ min
    Pressure range
    4 to 10 bar
    Weight
    280 g
    Noise level
    max. 70 dB(A)
    Operating temperature
    +10°C to +40°C
    Humidity range
    20% to 80% RH
    Belt size
    60 – 150 cm
    Alarm
    audible, in case of pressure loss
    Warranty
    from date of purchase: 1 years for manufacturing and material defects
    Marking
    UKCA

    Documents

    User manual supplied air
    optrel suppliedair product flyer

    Further information

    For further information pls refer to your optrel partner next to you or to our customer service.
