Product view
panoramaxxhybrid
It is your ideal companion for hand-held laser welding and conventional arc welding. During laser welding, the infrared radiation with its deep penetration depth can immediately and irreparably damage your eyesight. This can happen even with reflections. It is therefore essential to wear suitable eye and face protection. To avoid inhaling invisible pollutants during the laser process, suitable respiratory protection systems must be included in your PPE.
Now also suitable for laser welding
Hand-held laser welding is becoming increasingly popular: It is a simple, highly precise and very efficient method, but also extremely dangerous, especially for the eyes.
Once again, we have pushed the limits of what is possible. In collaboration with our prestigious partner laservison, we have devised a unique protection solution. The optrel panoramaxx hybrid series. It is our answer to the dangers posed by high-energy laser beams. There is also an automatic helmet for users who enjoy both hand-held laser welding and conventional arc welding!
The best of both worlds
All members of the panoramaxx hybrid series have a large field of vision thanks to the proven nose cut-out and crystal-clear optics, as well as state-of-the-art digital electronics, which together form a valuable assistance system. The patented ShadeTronic® and FadeTronic technology in combination with the 5-point sensor system and the re-charge energy concept are the core elements.
They enable focused and uninterrupted work for more quality and increased efficiency. And thanks to the perfectly fitting optrel lsoFit® headband, the new panoramaxx hybrid series is light as a feather and fatigue-free to wear. Their helmets are highly robust with the lowest possible weight and protect the user against mechanical external influences such as grinding mode and the incomparable look make even grinding work even more fun.
Perfectly combined with an optrel respiratory protection system

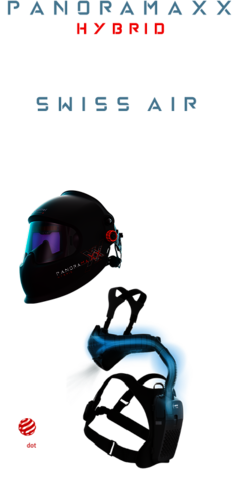

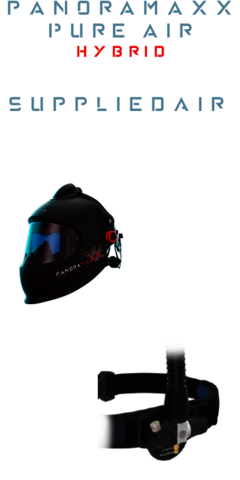

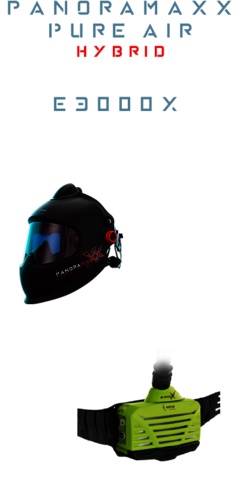

The helmets of the panoramaxx hybrid series are compatible with the world's largest selection of TH3-certified respiratory protection solutions thanks to full compatibility with the optrel e3000X / suppliedair (pure air models) and the optrel swiss air (all models).
The following combinations are perfectly matched:
panoramaxx hybrid
The best of both worlds
Your trusty assistant for hand-held laser welding and conventional arc welding! One helmet for two applications, with ISO certification and high quality just as you'd expect from optrel.
Autopilot
Shade Level 5 to 13
Twilight Function
Sensitivity Adjustment
True Color View
Warranty Extension
2+1 Years
New Energy Concept
Delay Function
Overhead Welding and Overhead Laser Welding
Fields of Application
- Suitable for laser welding! Laser range 1000 - 1100 nm
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Gas Welding
- Grind Mode
Variants
| Article Nr. | Description | Units | Image |
|---|---|---|---|
| 5000.270 | Front cover lens external, suitable for panoramaxx Series (set of 5) | 5 |  |
| 5004.290 | optrel IsoFit® headgear replacement Tricot pad for optrel IsoFit® headgear (5pc, each consisting of 4 parts) | 5 |  |
| 5010.001 | Micro USB charger cable | 1 |  |
| 4028.015 | Chest protection leather | 1 |  |
| 4028.016 | Head & neck protection leather | 1 |  |
| 4028.031 | Head & neck protection leather PAPR | 1 |  |
| 4551.024 | e3000/e3000X air hose holder | 1 |  |
| 8000.100 | Helmet backpack - black/green | 1 |  |
| 5003.298 | optrel IsoFit® headgear (black, red buttons) - maximum ergonomics with exchangeable pad inserts, suitable for all panoramaxx Series, sphere Series, liteflip Series and Y Series helmets with Position Locker | 1 |  |
Technical Data
active, manual: shade levels 4-9
ShadeTronic 5-13
0.090 ms at 20°C
0.070 ms at 55°C
dark to light:
0.1 s to 2.0 s (with FadeTronic)
Viewing angle dependency = V2
EN ISO 16321-2 (EN166): Front pane = E (B)
EN ISO 16321-2 (EN166): Inner protective screen = E (B)
EN ISO 16321-2 (EN175): Helmschale = E (B)
ANSI Z87.1: Z87+
ISO 19818-1: 1000-1100 OD7 C5 PS3
ISO 19818-1: 1000-1100 OD7 C5 PS3
Front cover lens: up to 137°C
Documents
Further information
For further information pls refer to your optrel partner next to you or to our customer service.
