Product view

liteflip autopilot

The first Flip-up with Autopilot.







NEW: The Fully Automated Welding Mask

automatically darkens as soon as the welding arc ignites. No manual shade level setting necessary. The optrel liteflip autopilot automatically adjusts to changing lighting.

The optrel liteflip autopilot

Super lightweight flip-up welding helmet with automatic shade level adjustment makes welding much more comfortable and easy.



  • Autopilot with shade level 1 / 4 / 5 to 14
  • True color view due to special developed UV-/IR-filter
  • Patented twilight function opens the ADF slowly from dark to light state
  • With only 530g weight one of the lightest flip-ups on the market
  • Perfectly combined with optrel e3000 PAPR System
  • Register your optrel product now and get 1 additional year of warranty free



Discover the optrel comfort features

e3000x Respiratory Protection System

For Maximum of Comfort at Welding:

  • Integriated Particle Filter of the highest Safety Class (TH3)
  • Protects reliably from Smoke, Aerosols, and Dust


Find out more





optrel  IsoFit®
headgear



The revolutionary headgear for maximum individual comfort – just fits perfectly!



As standard with ever optrel panoramaxx Series welding helmet.



Details

liteflip autopilot

Look into the Future.

Fully-automatic welding helmet (manual adjustment of the shade level not at all necessary) with flip-up function for clear view.

True color view, ADF with shade level range 4/5-14 with autopilot (fully-automated shade level adjustment), +/- 2 individual shade level correction, sensitivity adjustment and delay function with twilight function.


Autopilot
Shade Level 5 to 14


Shade Level
1/4/5<14M


Flip-up Mode

<p>Bei ausgewählten expert-Produkten werden speziell beschichtete Filter eingesetzt, die eine bessere Sicht auf das Schweissobjekt ermöglichen. Die Farberkennung durch diese Art Filter wurde so optimiert, dass die Farben der Umgebung fast farbecht wahrgenommen werden können. Somit kann der Schweisser auch ohne Probleme rote LEDs der Schweissmaschine ablesen, ohne den Helm anzuheben was die Effizienz im Schweissprozess und die Sicherheit weiter fördert.</p>

True Color View


Twilight Function


Respiratory Protection


Sensitivity Adjustment


Comfort Headband


Delay Function


Patented Excenter

<p>&nbsp;/&gt;</p>

Parking Buddy


Warranty Extension
2+1 Years

Fields of Application

  • Elektrode Welding (Stick Welding, SMAW)
  • MIG/MAG (GMAW)
  • GMAW High melting rate process
  • Flux Cored Wire Welding
  • TIG Welding (GTAW)
  • Plasma Arc Welding
  • Plasma Cutting
  • Grinding

Variants

1006.700
liteflip autopilot welding helmet
4441.700
liteflip autopilot with PAPR
1006.703
liteflip autopilot with universal hardhat adapter
4540.050
Ready to weld package liteflip autopilot black - PAPR welding helmet and e3000X (ATEX) PAPR blower unit green, 18h power battery, parking buddy and e3000/X bag
4540.052
Ready to weld upgrade liteflip autopilot black - PAPR welding helmet shell without ADF, e3000X (ATEX) PAPR blower unit green, 18h power battery, parking buddy and e3000/X bag
4600.070
Ready to weld package liteflip autopilot + swiss air respiratory protection system complete with control panel incl. comfort half mask: consisting of half mask and hose system incl. head and neck strap, blower unit, shoulder harness, charger, storage bag
Article Nr.DescriptionUnitsImage
5003.290optrel IsoFit® headgear (black, black knobs) - maximum ergonomics with exchangeable padding, suitable for all panoramaxx Series, sphere Series, liteflip Series and Y Series helmets
5003.291optrel IsoFit® headgear (black, green knobs) - maximum ergonomics with exchangeable padding, suitable for all panoramaxx Series, sphere Series, liteflip Series and Y Series helmets1
5003.292optrel IsoFit® headgear (black, grey knobs) - maximum ergonomics with exchangeable padding, suitable for all panoramaxx Series, sphere Series, liteflip Series and Y Series helmets1
5004.290optrel IsoFit® headgear replacement Tricot pad for optrel IsoFit® headgear (5pc, each consisting of 4 parts)5
8000.100Helmet backpack - black/green1
5000.390inside safety lens/grinding lens liteflip autopilot5
5000.391front cover lens liteflip autopilot5
5000.001Clear inside cover lens, e684/e680, e670/e650/vegaview/p550 & p5305
5004.073Sweatband2
5004.020comfort band for headband2
5012.490liteflip autopilot replacement cartridge1
5001.916liteflip autopilot helmet shell - black1
5003.250Comfort head band panoramaxx - black , panoramaxx1
5002.049Quarter turn bolt for headband2
5002.300Adapter frame for liteflip passive filter1
5000.236Inside cover lens, liteflip passive5
5000.050Magnifying lens 1.00, e684/e680, e670/e650/vegaview/p550 & p5301
5000.051Magnifying lens 1.50, e684/e680, e670/e650/vegaview/p550 & p5301
5000.052Magnifying lens 2.00, e684/e680, e670/e650/vegaview/p550 & p5301
5000.053Magnifying lens 2.50, e684/e680, e670/e650/vegaview/p550 & p5301
5000.013Inside cover lens dark green, +2.0, sphere-eerie, y-serie, liteflip, OSE5
4028.015Chest protection leather1
4028.016Head & neck protection leather1
5011.180Hard hat adapter1
5002.900parking buddy for weldcap and optrel welding helmets1
4290.000Fresh air helmet shell (e3000) - liteflip - black1
4551.024e3000/e3000X air hose holder1
4160.100Face seal suitable for b630/p3301
4157.000Face seal suitable for e600/vegaview helmets with hard hat1
4028.031Head & neck protection leather PAPR1
5002.840bumpcap black to attach to the optrel headband1
5003.530Headgear halo to clip on, suitable for all optrel headbands.1
5011.130Hard hat - black1
5011.131Hard hat - white1
5011.132Hard hat - red1
5011.133Hard hat - orange1
5011.134Hard hat - yellow1
5000.175Inner protective lens, colourfast, +1.0 (set of 5) - fits sphere series, Y series, liteflip, OSE5

Technical Data

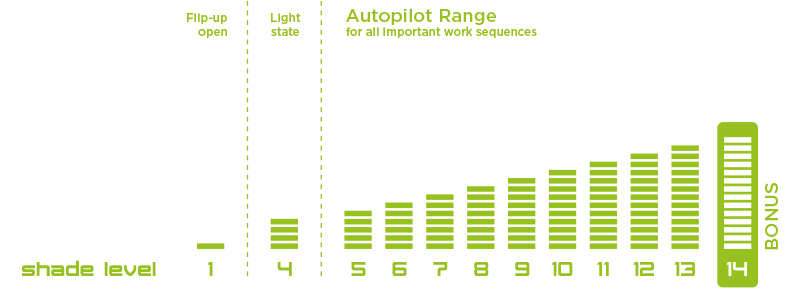

Shade levels
Open / clear view: shade level 1
Closed / inactive: shade level 4
Closed / active: shade levels 5-14
Autopilot
Automatic shade level adjustment for shade level range 5 to 14 with individual calibration option of ± 2.
Power supply
Photovoltaic cell, 2 pcs batteries 3V exchangeable (CR2032)
Operating time batteries
Approx. 3,000 hours (operating)
Sensors
3 sensors
Sensitivity
Infinite adjustment, new with “Super High” range
Switching time
Light to dark: 0.100 ms at room temperature, 0.100 ms at 55°C / 131°F
Dark to light: 0.3 s or 1.5 s (with twilight function)
Field of view
Flip-up open: 82 x 102 mm
Flip-up closed: 50 x 100 mm
Classification
Optical class: 1
Scattered light: 1
Homogeneity: 1
Angular dependence: 2
Shape stability
Welding mask: up to 220°C / 428°F
Front cover lens: up to 137°C / 279°F
Eye protection
Ultraviolet / Infrared Protection: maximum protection at any shade level
Operating temperature
-10°C to +70°C / 14°F to 158°F
Storage temperature
 -20°C to +80°C / -4°F to 176°F
Weight
 Standard helmet: 530 g / 18.7 oz
PAPR helmet: 730 g / 25.8 oz
Scope of delivery
Welding helmet, instruction manual, storage bag, batteries, warranty card
Warranty
from date of purchase: 2 years for manufacturing and material defects (battery excluded)
Warranty extension
1 year additional (battery excluded) for online product registration within the first 6 months (from date of purchase) on optrel.com/register

Documents

optrel liteflip autopilot sales folder
optrel liteflip autopilot manual
optrel liteflip autopilot technical datasheet

Further information

For further information pls refer to your optrel partner next to you or to our customer service.
