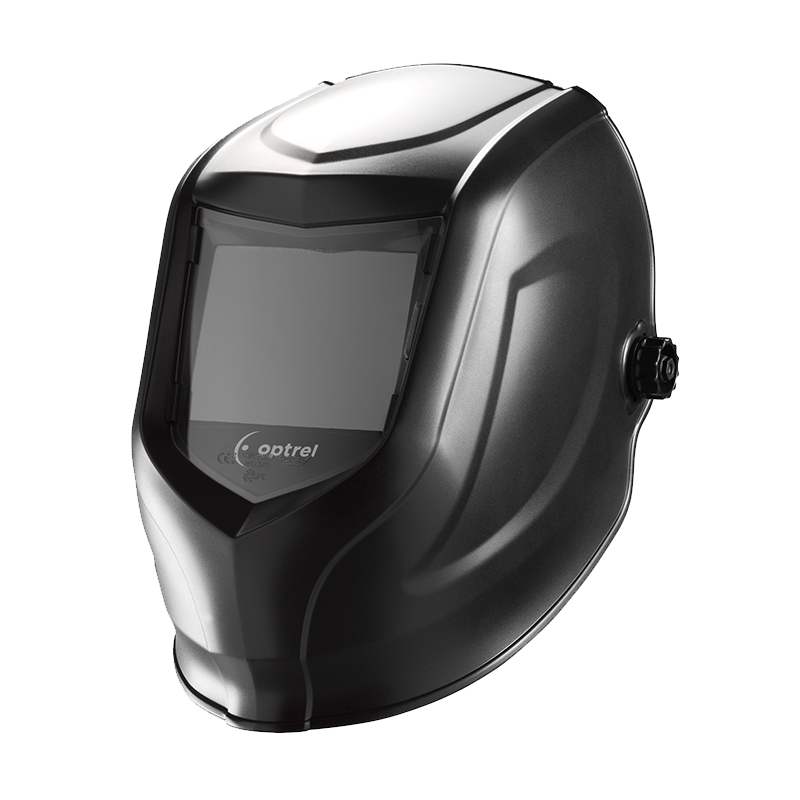

p505
The passive welding helmet.
The passive welding helmet of the new optrel p500 series! The new DIN 11 helmet out of the optrel pro-line meets all sorts of needs: safe protection, comfort and consistent quality make the optrel p505 an optimal working tool for pro and occasional welders.
In addition to the shade level DIN 11 (ex works), passive filters from DIN 8 - 13 are available.
Fields of Application
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Micro Plasma Arc Welding
- Plasma Cutting
Certificates
Variants

1007.500
p505 Schweisshelm schwarz, unlackiert
Article Nr. | Description | Units | Image |
---|---|---|---|
38002490 | Passive filter shade 9, 110 x 90mm | 25 | ![]() |
38002500 | Passive filter shade 10, 110 x 90mm | 25 | ![]() |
38002510 | Passive filter shade 11, 110 x 90mm | 25 | ![]() |
38002520 | Passive filter shade 12, 110 x 90mm | 25 | ![]() |
38002530 | Passive filter shade 13, 110 x 90mm | 25 | ![]() |
5000.250 | Front cover lens p500 (The original is packaged and protected with a green protective foil) | 5 | ![]() |
5000.255 | Clear lens 90 x 110mm, p505 | 25 | ![]() |
5004.020 | comfort band for headband | 2 | ![]() |
5004.073 | Sweatband | 2 | ![]() |
5001.750 | Helmet shell - black-black, p530/p505 | 1 | ![]() |
5002.049 | Quarter turn bolt for headband | 2 | ![]() |
5002.210 | Retention spring p505 | 10 | |
5003.250 | Head band | 1 | ![]() |
4028.015 | Chest protection leather | 1 | ![]() |
4028.016 | Head & neck protection leather | 1 | ![]() |
5002.900 | parking buddy for weldcap and optrel welding helmets | 1 | ![]() |
8000.100 | Helmet backpack - black/green | 1 | ![]() |
Technical Data
Field of vision
90 x 110 mm
Eye protection
Maximum UV and IR protection with optrel passive glasses
Classification according to EN166
1 (optical class)
Classification according to EN175
B (120m/s impact resistance)
Working temperature
-40°C to +130°C
Total weight
485 g
Guarantee
2 years
Further information
For further information pls refer to your optrel partner next to you or to our customer service.
